CHV horizontale verstelbare hijsklemmen
Verstelbare hijsklem voor het veilig hijsen en verplaatsen van pakketten en enkele platen in horizontale positie. Deze klemmen altijd per paar gebruiken.
Norm:
EN12100-1/2, EN13155, AS4991, ASME-B30,20

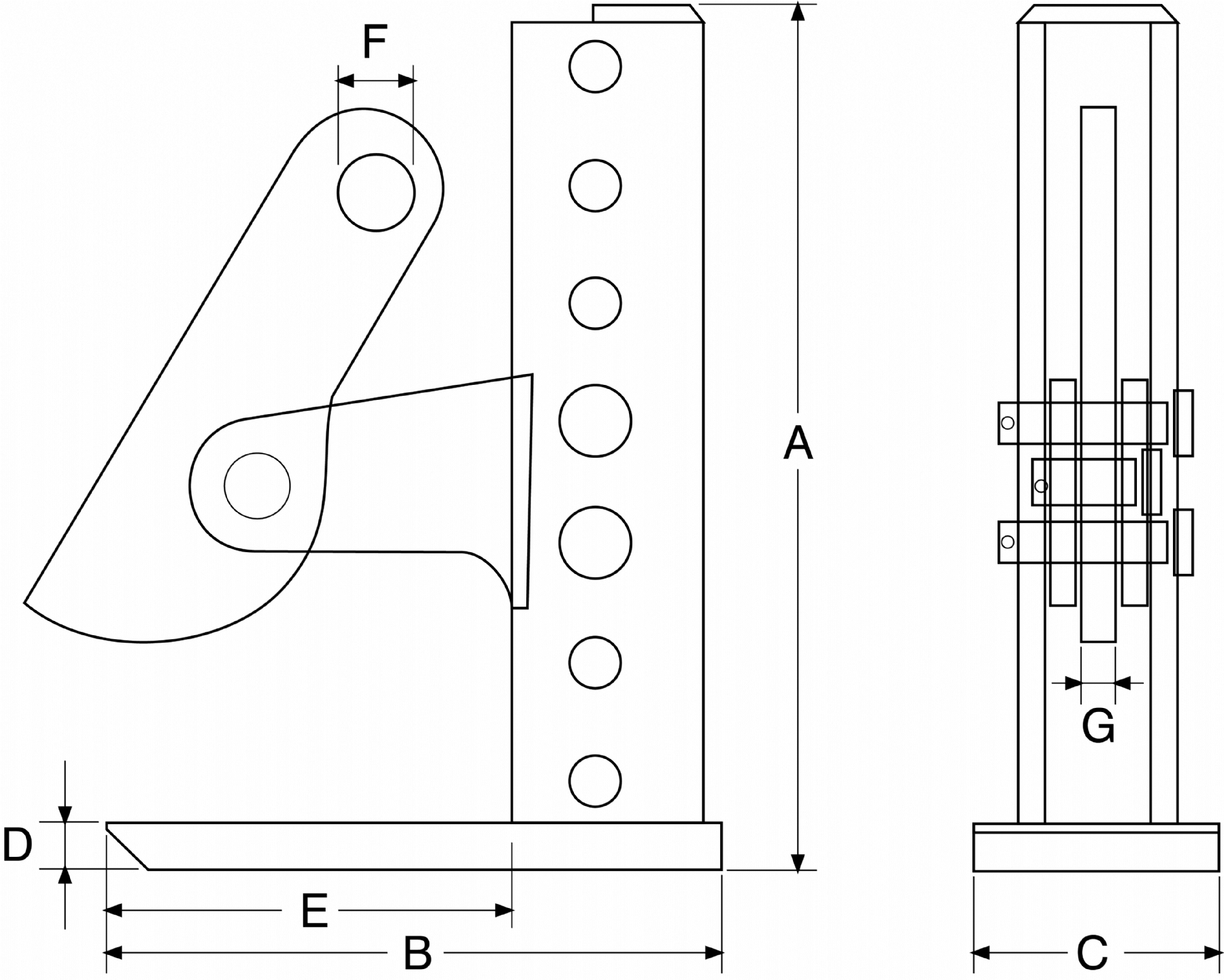

| Artikel nr. | Type | Veilige werklast (kg) | Bek-opening (mm) | A (mm) | B (mm) | C (mm) |
| 5004063 | CHV-1.5 | 1500/2 | 3-180 | 290 | 200 | 90 |
| 5004064 | CHV-1.5X | 1500/2 | 3-300 | 410 | 200 | 90 |
| 5004065 | CHV-3.0 | 3000/2 | 3-180 | 300 | 235 | 105 |
| 5004066 | CHV-3.0X | 3000/2 | 3-420 | 535 | 235 | 105 |
| 5004067 | CHV-4.5 | 4500/2 | 3-180 | 300 | 235 | 105 |
| 5004068 | CHV-4.5X | 4500/2 | 3-420 | 540 | 235 | 120 |
| 5004069 | CHV-6.0 | 6000/2 | 3-180 | 305 | 250 | 120 |
| 5004070 | CHV-6.0X | 6000/2 | 3-420 | 540 | 250 | 120 |
| 5004071 | CHV-9.0 | 9000/2 | 3-180 | 305 | 250 | 120 |
| 5004072 | CHV-9.0X | 9000/2 | 3-420 | 540 | 250 | 120 |
| Type | D (mm) | E (mm) | F (mm) | G (mm) | Gewicht (Kg) |
| CHV-1.5 | 15 | 135 | 30 | 20 | 18/2 |
| CHV-1.5X | 15 | 135 | 30 | 20 | 23/2 |
| CHV-3.0 | 20 | 165 | 30 | 20 | 29/2 |
| CHV-3.0X | 20 | 165 | 30 | 20 | 31/2 |
| CHV-4.5 | 20 | 165 | 30 | 20 | 32/2 |
| CHV-4.5X | 20 | 170 | 30 | 20 | 34/2 |
| CHV-6.0 | 25 | 160 | 30 | 20 | 40/2 |
| CHV-6.0X | 25 | 165 | 30 | 20 | 46/2 |
| CHV-9.0 | 25 | 160 | 30 | 20 | 51/2 |
| CHV-9.0X | 25 | 165 | 30 | 20 | 60/2 |
