RPHA pallethaken met automatische balancering
Kenmerken:
- Verstelbare gaffels.
- Hoogteverstelling.
- Minimale belasting 25%.
Norm:
EN12100-1/2, EN13155

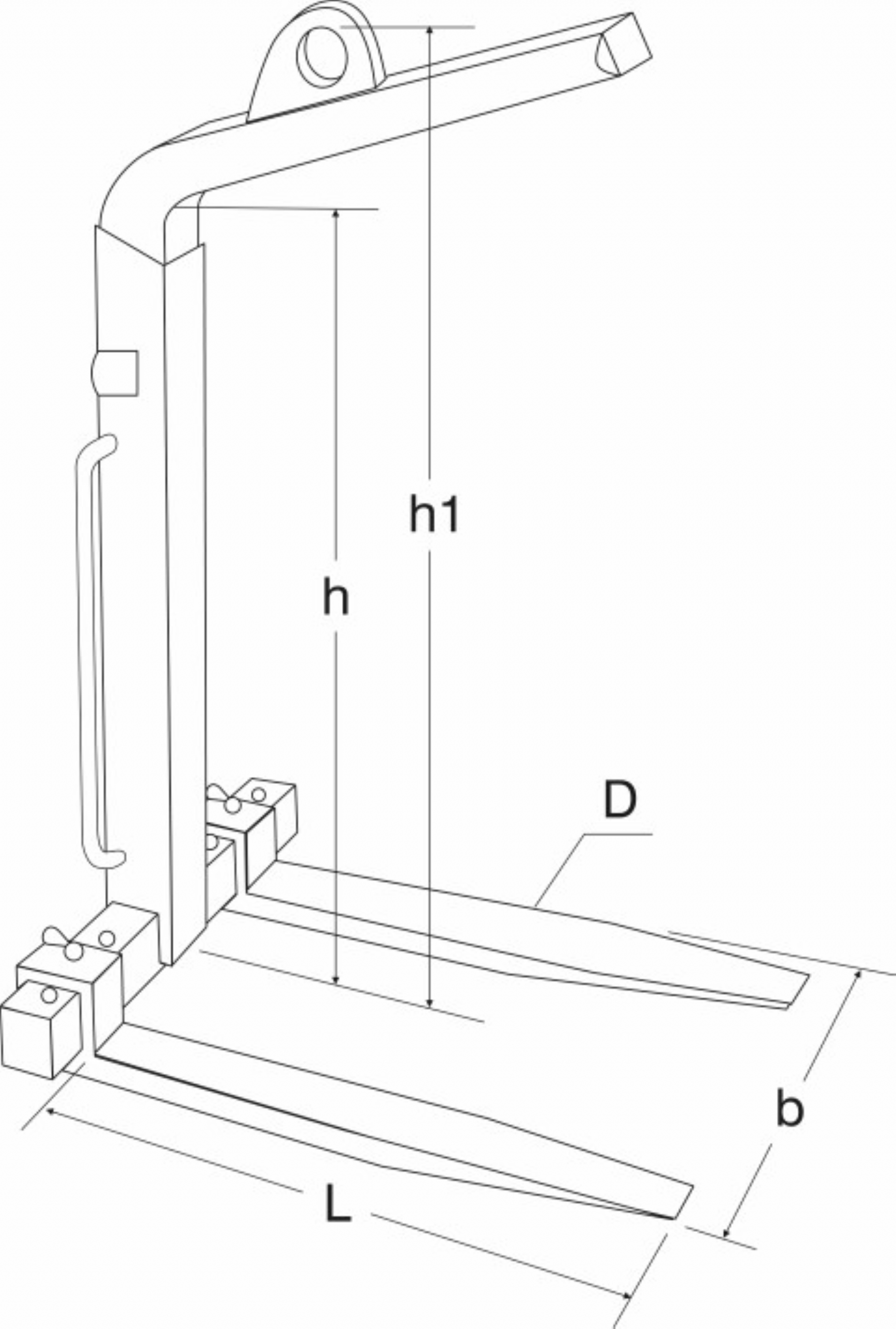

| Artikel nr. | Type | Veilige werklast (kg) | B (mm) | D (mm) | H (mm) | H1 (mm) | Afm. vork (mm) | Diameter ophang -oog (mm) | Gewicht Kg) |
| 5005216 | RPHA-1 | 1000 | 350 – 900 | 100 x 30 | 1300-2000 | 1655 -2355 | 1000 x 100 x 30 | 100 x 80 | 140 |
| 5005217 | RPHA-2 | 2000 | 400 -900 | 120 x 40 | 1300- 2000 | 1655 -2355 | 1000 x 100 x 40 | 100 x 80 | 220 |
| 5005218 | RPHA-3L | 3000 | 450 -900 | 120 x 50 | 1300- 2000 | 17720 – 2420 | 1000 x 120 x 50 | 120 x 100 | 280 |
| 5005219 | RPHA-5 | 5000 | 530 – 1000 | 150 x 60 | 1300 -2000 | 1850-2650 | 1000 x 150 x 60 | 136 x 120 | 380 |
