RPHM pallethaken met handmatige balancering
Kenmerken:
- Verstelbare gaffels.
- Hoogteverstelling.
Norm:
EN12100-1/2, EN13155

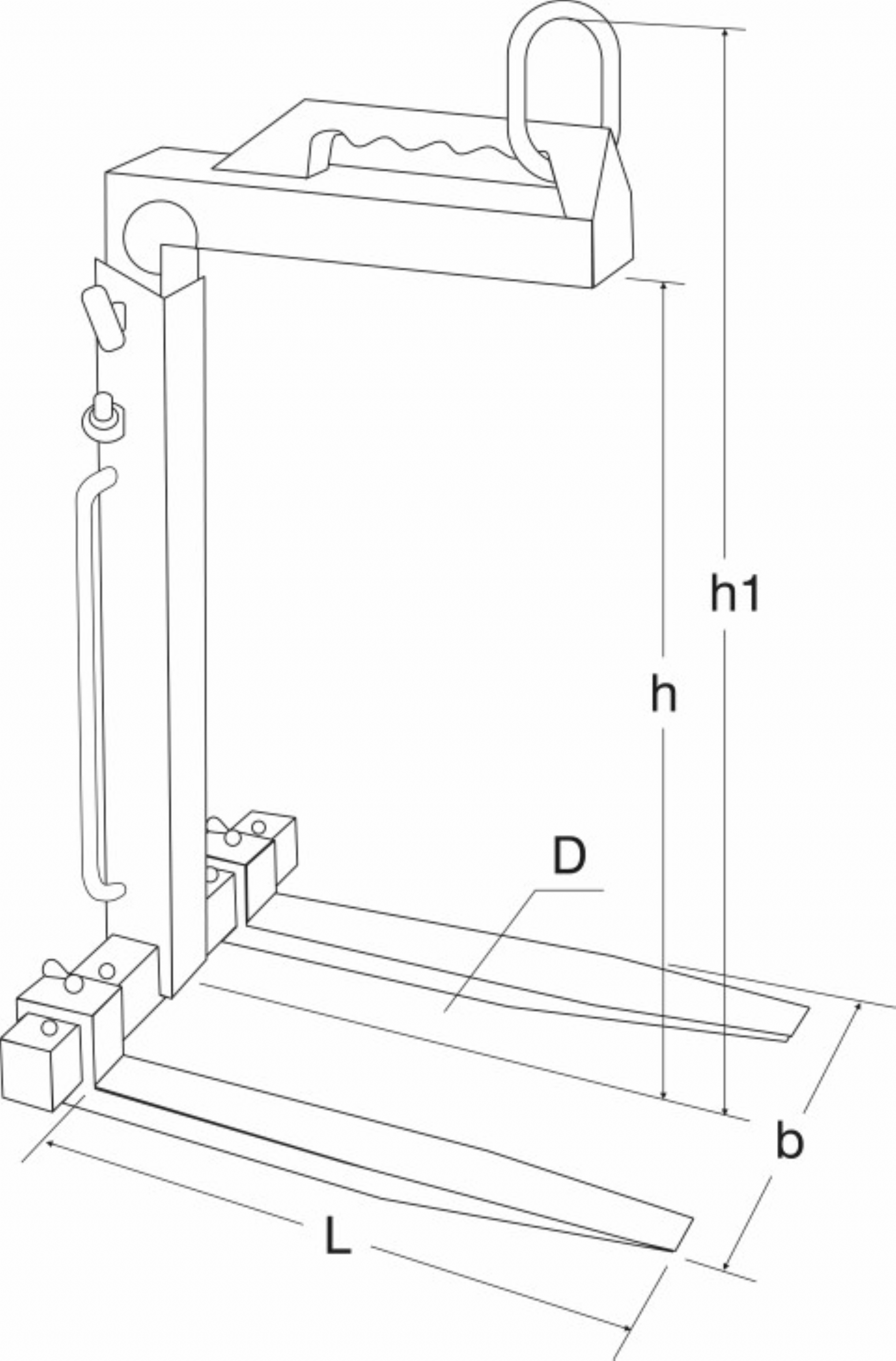

| Artikel nr. | Type | Veilige werklast (Kg) | B (mm) | D (mm) | H (mm) | H1 (mm) | Afm. vork (mm) | Diameter ophang oog (mm) | Gewicht (Kg) |
| 5005220 | RPHM-1 | 1000 | 350-900 | 100 x 30 | 1300-2000 | 1700 -2400 | 1000 x 100 x 30 | 100 x 80 | 130 |
| 5005221 | RPHM-2 | 2000 | 400-900 | 120 x 40 | 1300-2000 | 1700-2400 | 1000 x 120 x 40 | 100 x 80 | 200 |
| 5005222 | RPHM-3 | 3000 | 450-900 | 120 x 50 | 1300-2000 | 1700-2400 | 1000 x 120 x 50 | 120 x 100 | 250 |
| 5005223 | RPHM-5 | 5000 | 530-1000 | 150 x 60 | 1300-2000 | 1700-2450 | 1000 x 150 x 60 | 136 x 120 | 370 |
